Playwright AWS CodeBuild Setup - TestDino Documentation

What you’ll learn

How to upload Playwright results from Amazon CodeBuild to TestDino
How to configure sharded test runs with merged reporting
How to set up the TESTDINO_TOKEN as a CodeBuild environment variable

Set up an AWS CodeBuild project to upload Playwright test results to TestDino and view aggregated analytics, failure analysis, and flaky test detection on your dashboard. This guide covers a basic buildspec, sharded buildspec for parallel test execution across multiple shard passes, and merged reporting.

Prerequisites

Before setting up, ensure you have:

A TestDino account with a project created
A TestDino API key (Generate API Keys)
An AWS account with CodeBuild access
A Playwright test project (or clone the TestDino Example Repository to get started)
Playwright configured with JSON and HTML reporters in playwright.config.js:

playwright.config.js

// ...existing config

reporter: [
  ['html', { outputDir: './playwright-report' }],  // Optional
  ['json', { outputFile: './playwright-report/report.json' }],  // ✅ Required
]

Set Up Your API Key

Store your TestDino API key as a CodeBuild environment variable so it is available to your build without exposing it in buildspec files.

Open your AWS CodeBuild project
Choose Edit
Open the Environment section
Add an environment variable named TESTDINO_TOKEN
Paste your TestDino API key as the value
Save the project

WarningNever commit your API key directly in buildspec files. Always use CodeBuild environment variables. For additional security, store the key in AWS Systems Manager Parameter Store or AWS Secrets Manager and reference it in your environment configuration.

Basic Buildspec Config

For a simple setup without sharding, add the upload step after your Playwright tests.

buildspec.yml — Basic buildspec

buildspec.yml

version: 0.2

phases:
  install:
    runtime-versions:
      nodejs: 20
    commands:
      - npm ci
      - npx playwright install --with-deps
  build:
    commands:
      - npx playwright test
  post_build:
    commands:
      - npx tdpw upload ./playwright-report --token="$TESTDINO_TOKEN"

artifacts:
  files:
    - playwright-report/**/*
    - test-results/**/*
  discard-paths: no

TipThe post_build phase runs even if the build phase fails, ensuring test results are uploaded regardless of test outcomes. The artifacts block saves reports for review in S3.

Upload Options

Flag	Description	Default
`--environment <value>`	Target environment tag (staging, production, qa)	unknown
`--tag <values>`	Comma-separated run tags for categorization (max 5)	None
`--upload-images`	Upload image attachments	false
`--upload-videos`	Upload video attachments	false
`--upload-html`	Upload HTML reports	false
`--upload-traces`	Upload trace files	false
`--upload-files`	Upload file attachments (.md, .pdf, .txt, .log)	false
`--upload-full-json`	Upload all attachments	false
`--json`	Output results as JSON to stdout (for CI/CD)	false
`-v, --verbose`	Enable verbose logging	false

Sharded Test Runs

For larger test suites, CodeBuild runs Playwright across multiple shard passes within a single build. Each shard produces a blob report that gets merged before uploading to TestDino.

How it works

CodeBuild runs 4 Playwright shard passes sequentially in a single build
Each shard’s blob report is copied to a dedicated directory
All blob reports are flattened and merged into a single report.json
The merged report is uploaded to TestDino
The build fails only if both tests and the merge/upload fail

Full sharded config

buildspec.yml — Sharded buildspec

buildspec.yml

version: 0.2

phases:
  install:
    runtime-versions:
      nodejs: 20
    commands:
      - npm ci
      - npx playwright install --with-deps
  build:
    commands:
      - rm -rf all-blob-reports playwright-report blob-report
      - |
        TEST_EXIT_CODE=0
        MERGE_AND_UPLOAD_EXIT_CODE=0
        for SHARD in 1 2 3 4; do
          mkdir -p "all-blob-reports/shard-$SHARD"
          npx playwright test --shard=$SHARD/4 || TEST_EXIT_CODE=1
          if [ -d blob-report ]; then
            cp -R blob-report/. "all-blob-reports/shard-$SHARD/"
          fi
          rm -rf blob-report
        done
        mkdir -p playwright-report all-blob-reports-flat
        find all-blob-reports -type f -exec cp {} all-blob-reports-flat/ \;
        if find all-blob-reports-flat -type f | grep -q .; then
          npx playwright merge-reports --reporter=json ./all-blob-reports-flat > playwright-report/report.json || MERGE_AND_UPLOAD_EXIT_CODE=1
        else
          echo "No blob report files were found to merge."
          MERGE_AND_UPLOAD_EXIT_CODE=1
        fi
        if [ -f playwright-report/report.json ]; then
          npx tdpw upload ./playwright-report --token="$TESTDINO_TOKEN" || MERGE_AND_UPLOAD_EXIT_CODE=1
        else
          echo "Skipping TestDino upload because the merged report was not created."
          MERGE_AND_UPLOAD_EXIT_CODE=1
        fi
        test $TEST_EXIT_CODE -eq 0 && test $MERGE_AND_UPLOAD_EXIT_CODE -eq 0

artifacts:
  files:
    - playwright-report/**/*
    - test-results/**/*
  discard-paths: no

Key details

Config Block	What It Does
`runtime-versions: nodejs: 20`	Uses Node.js 20 managed runtime
`for SHARD in 1 2 3 4`	Runs 4 shard passes sequentially within a single build
`--shard=$SHARD/4`	Passes the shard value directly to Playwright
`cp -R blob-report/. "all-blob-reports/shard-$SHARD/"`	Copies each shard’s blob report to a dedicated directory
`find ... -exec cp`	Flattens all blob files into a single directory for merging
`merge-reports --reporter=json`	Merges blob reports into a single `report.json`
`TEST_EXIT_CODE` / `MERGE_AND_UPLOAD_EXIT_CODE`	Tracks failures independently so upload runs even if tests fail
`artifacts`	Saves Playwright reports and test results to S3

Pipeline execution

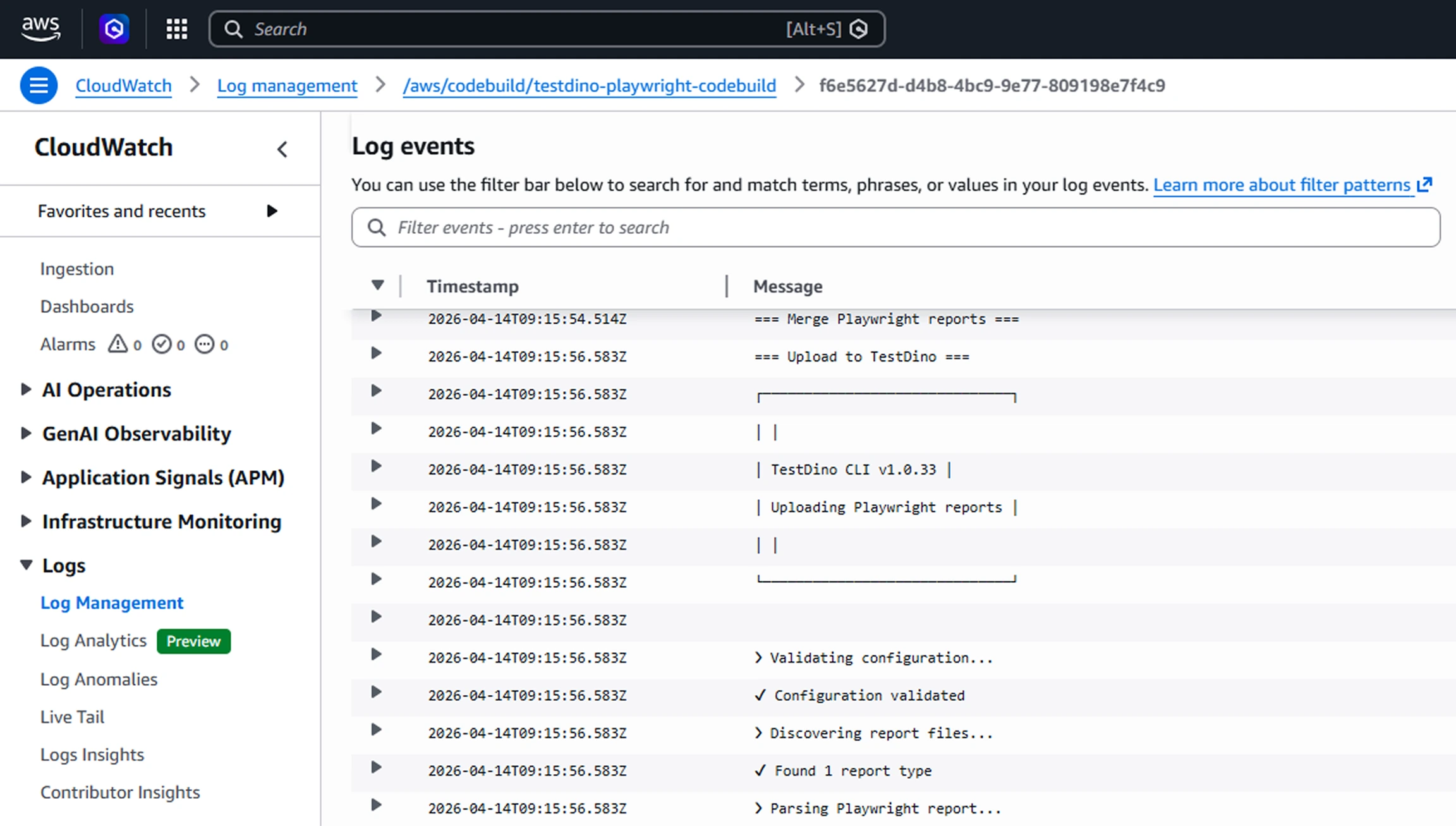

After the pipeline runs, CodeBuild logs show the TestDino CLI output in CloudWatch under /aws/codebuild/<project-name>. AWS CloudWatch log events showing TestDino CLI upload output with configuration validation, file discovery, and Playwright report parsing steps

AWS CloudWatch log events showing TestDino CLI upload output with configuration validation, file discovery, and Playwright report parsing steps

Results in TestDino

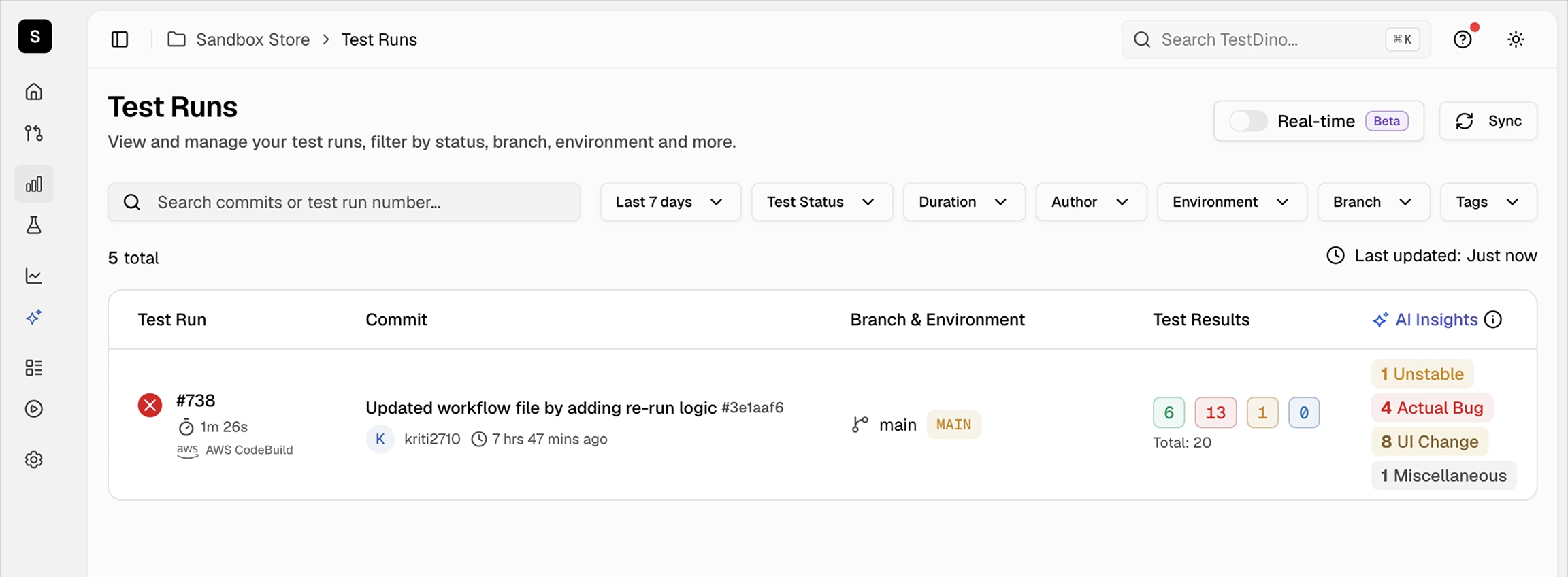

Once uploaded, the test run appears in your TestDino dashboard with full failure details, flaky detection, and trend data. TestDino Test Runs dashboard showing uploaded results from AWS CodeBuild with pass/fail counts and AI Insights

TestDino Test Runs dashboard showing uploaded results from AWS CodeBuild with pass/fail counts and AI Insights

Rerun Failed Tests

Cache test metadata to enable selective reruns:

buildspec.yml

post_build:
  commands:
    - npx tdpw cache --token="$TESTDINO_TOKEN"
    - npx tdpw upload ./playwright-report --token="$TESTDINO_TOKEN"

Rerun only failed tests on the next build:

buildspec.yml

build:
  commands:
    - |
      FAILED=$(npx tdpw last-failed --token="$TESTDINO_TOKEN")
      if [ -n "$FAILED" ]; then
        npx playwright test $FAILED
      else
        echo "No failed tests found."
      fi

For advanced rerun strategies, caching patterns, and CI optimization techniques, see CI Optimization.

Troubleshooting

Upload step skipped after test failure

Move the upload command to the post_build phase, which runs regardless of the build phase exit code. For the sharded buildspec, the script tracks exit codes independently so upload always runs.

report.json not found

Verify your playwright.config.js includes both HTML and JSON reporters with HTML listed first. For sharded runs, ensure each shard’s blob-report directory exists before copying. Check that the find command locates files in all-blob-reports-flat/.

TESTDINO_TOKEN not available in build

Confirm the environment variable is set in your CodeBuild project under Environment → Environment variables. If using Parameter Store or Secrets Manager, verify the IAM role has read access to the secret.

Blob reports not found during merge

Ensure each shard pass produces a blob-report directory. Check that your Playwright config includes ['blob'] in the reporter list or that the default blob output is not overridden. Verify the cp -R command copies files before rm -rf blob-report clears them.

Next Steps

CI Optimization

Reduce CI time with smart reruns

Branch Mapping

Map branches to environments for organized test runs

Integrations

Connect Slack, Jira, Linear, Asana, and more

TestDino MCP

Access test results and fix issues with AI agents
