What you’ll learn

How to upload Playwright results from Jenkins pipelines to TestDino
How to configure sharded test runs with merged reporting
How to store the TESTDINO_TOKEN as a Jenkins credential

Set up a Jenkins pipeline to upload Playwright test results to TestDino and view aggregated analytics, failure analysis, and flaky test detection on your dashboard. This guide covers a basic pipeline, sharded pipeline for parallel test execution across multiple shards, and merged reporting.

Prerequisites

Before setting up, ensure you have:

A TestDino account with a project created
A TestDino API key (Generate API Keys)
Jenkins instance with pipeline support
A Playwright test project (or clone the TestDino Example Repository to get started)
Playwright configured with JSON and HTML reporters in playwright.config.js:

playwright.config.js

// ...existing config

reporter: [
  ['html', { outputDir: './playwright-report' }],  // Optional
  ['json', { outputFile: './playwright-report/report.json' }],  // ✅ Required
]

Set Up Your API Key

Store your TestDino API key as a Jenkins credential so it is available to your pipeline without exposing it in logs or config files.

Open Jenkins
Go to Manage Jenkins → Credentials
Open the store where you want to add the secret
Click Add Credentials
Set Kind to Secret text
Paste your TestDino API key into Secret
Set the ID to TESTDINO_TOKEN
Click Save

WarningNever commit your API key directly in pipeline files. Always use Jenkins credentials. Secret credentials are not exposed in build logs.

Basic Pipeline Config

For a simple setup without sharding, add the upload step after your Playwright tests.

Jenkinsfile — Basic pipeline

Jenkinsfile

pipeline {
    agent {
        docker {
            image 'mcr.microsoft.com/playwright:v1.59.1-noble'
            args '-u root'
        }
    }

    environment {
        CI = 'true'
        HOME = '/root'
        TESTDINO_TOKEN = credentials('TESTDINO_TOKEN')
    }

    stages {
        stage('Install') {
            steps {
                sh 'npm ci'
            }
        }

        stage('Test') {
            steps {
                sh 'npx playwright test'
            }
        }

        stage('Upload to TestDino') {
            steps {
                sh 'npx tdpw upload ./playwright-report --token="$TESTDINO_TOKEN"'
            }
        }
    }

    post {
        always {
            sh 'npx tdpw upload ./playwright-report --token="$TESTDINO_TOKEN"'
            archiveArtifacts artifacts: 'playwright-report/**', allowEmptyArchive: true
        }
    }
}

TipThe post.always block ensures the upload runs even if tests fail. The credentials() function maps the Jenkins credential to an environment variable accessible in the script.

Upload Options

Flag	Description	Default
`--environment <value>`	Target environment tag (staging, production, qa)	unknown
`--tag <values>`	Comma-separated run tags for categorization (max 5)	None
`--upload-images`	Upload image attachments	false
`--upload-videos`	Upload video attachments	false
`--upload-html`	Upload HTML reports	false
`--upload-traces`	Upload trace files	false
`--upload-files`	Upload file attachments (.md, .pdf, .txt, .log)	false
`--upload-full-json`	Upload all attachments	false
`--json`	Output results as JSON to stdout (for CI/CD)	false
`-v, --verbose`	Enable verbose logging	false

Sharded Test Runs

For larger test suites, Jenkins parallel stages split tests across multiple shards. Each shard produces a blob report that gets merged before uploading to TestDino.

How it works

Jenkins runs Playwright across 4 shards using parallel stages
Each shard stashes its blob report as a build artifact
A separate Merge and upload stage unstashes all blob reports, merges them into a single report.json, and uploads to TestDino
Each shard marks the build as unstable (not failed) if tests fail, so the merge stage always runs

Full sharded config

Jenkinsfile — Sharded pipeline

Jenkinsfile

pipeline {
    agent {
        docker {
            image 'mcr.microsoft.com/playwright:v1.59.1-noble'
            args '-u root'
        }
    }

    environment {
        CI = 'true'
        HOME = '/root'
        TESTDINO_TOKEN = credentials('TESTDINO_TOKEN')
    }

    options {
        timeout(time: 45, unit: 'MINUTES')
        disableConcurrentBuilds()
    }

    stages {
        stage('Checkout') {
            steps {
                checkout scm
                stash includes: '**/*', name: 'source'
            }
        }

        stage('Run Playwright shards') {
            parallel {
                stage('Shard 1') {
                    steps {
                        dir('shard-1') {
                            unstash 'source'
                            sh 'npm ci'
                            script {
                                def testExitCode = sh(returnStatus: true, script: 'npx playwright test --shard=1/4')
                                stash allowEmpty: true, includes: 'blob-report/**', name: 'blob-report-1'
                                junit allowEmptyResults: true, testResults: 'test-results/junit.xml'
                                if (testExitCode != 0) {
                                    unstable('Playwright shard 1 reported test failures.')
                                }
                            }
                        }
                    }
                }
                stage('Shard 2') {
                    steps {
                        dir('shard-2') {
                            unstash 'source'
                            sh 'npm ci'
                            script {
                                def testExitCode = sh(returnStatus: true, script: 'npx playwright test --shard=2/4')
                                stash allowEmpty: true, includes: 'blob-report/**', name: 'blob-report-2'
                                junit allowEmptyResults: true, testResults: 'test-results/junit.xml'
                                if (testExitCode != 0) {
                                    unstable('Playwright shard 2 reported test failures.')
                                }
                            }
                        }
                    }
                }
                stage('Shard 3') {
                    steps {
                        dir('shard-3') {
                            unstash 'source'
                            sh 'npm ci'
                            script {
                                def testExitCode = sh(returnStatus: true, script: 'npx playwright test --shard=3/4')
                                stash allowEmpty: true, includes: 'blob-report/**', name: 'blob-report-3'
                                junit allowEmptyResults: true, testResults: 'test-results/junit.xml'
                                if (testExitCode != 0) {
                                    unstable('Playwright shard 3 reported test failures.')
                                }
                            }
                        }
                    }
                }
                stage('Shard 4') {
                    steps {
                        dir('shard-4') {
                            unstash 'source'
                            sh 'npm ci'
                            script {
                                def testExitCode = sh(returnStatus: true, script: 'npx playwright test --shard=4/4')
                                stash allowEmpty: true, includes: 'blob-report/**', name: 'blob-report-4'
                                junit allowEmptyResults: true, testResults: 'test-results/junit.xml'
                                if (testExitCode != 0) {
                                    unstable('Playwright shard 4 reported test failures.')
                                }
                            }
                        }
                    }
                }
            }
        }

        stage('Merge and upload') {
            steps {
                dir('merge') {
                    unstash 'source'
                    sh 'npm ci'
                    dir('shard-1') { unstash 'blob-report-1' }
                    dir('shard-2') { unstash 'blob-report-2' }
                    dir('shard-3') { unstash 'blob-report-3' }
                    dir('shard-4') { unstash 'blob-report-4' }
                    sh '''
                        mkdir -p all-blob-reports playwright-report
                        for shard in shard-1 shard-2 shard-3 shard-4; do
                          if [ -d "$shard/blob-report" ]; then
                            cp "$shard"/blob-report/* all-blob-reports/
                          fi
                        done
                    '''
                    sh 'npx playwright merge-reports --reporter=json ./all-blob-reports > playwright-report/report.json'
                    sh 'npx tdpw upload ./playwright-report --token="$TESTDINO_TOKEN"'
                }
            }
        }
    }

    post {
        always {
            archiveArtifacts artifacts: 'merge/playwright-report/**', allowEmptyArchive: true
        }
    }
}

Key details

Config Block	What It Does
`docker { image ... }`	Uses the official Playwright Docker image with all browsers pre-installed
`parallel { stage('Shard N') }`	Runs 4 shard stages in parallel
`--shard=1/4` through `--shard=4/4`	Passes the shard value directly to Playwright
`stash / unstash`	Passes blob reports between parallel stages and the merge stage
`unstable()`	Marks the build as unstable (not failed) when tests fail, so the merge stage still runs
`junit`	Publishes JUnit test results for Jenkins test reporting
`merge-reports --reporter=json`	Merges blob reports into a single `report.json`
`archiveArtifacts` in `post.always`	Archives the merged Playwright report regardless of build outcome

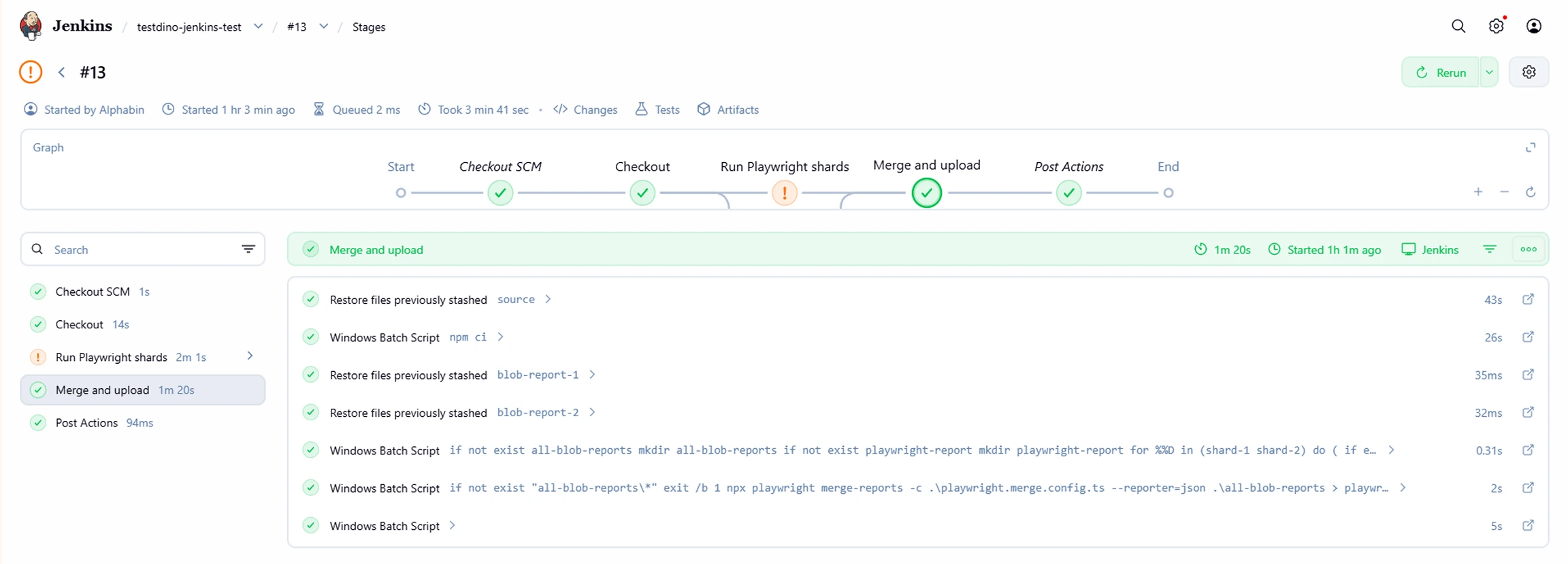

Pipeline execution

After the pipeline runs, Jenkins shows each stage in the pipeline graph with pass, fail, or unstable status. Jenkins pipeline stages view showing Checkout SCM, Checkout, Run Playwright shards (unstable), Merge and upload (passed), and Post Actions stages with step details

Jenkins pipeline stages view showing Checkout SCM, Checkout, Run Playwright shards (unstable), Merge and upload (passed), and Post Actions stages with step details

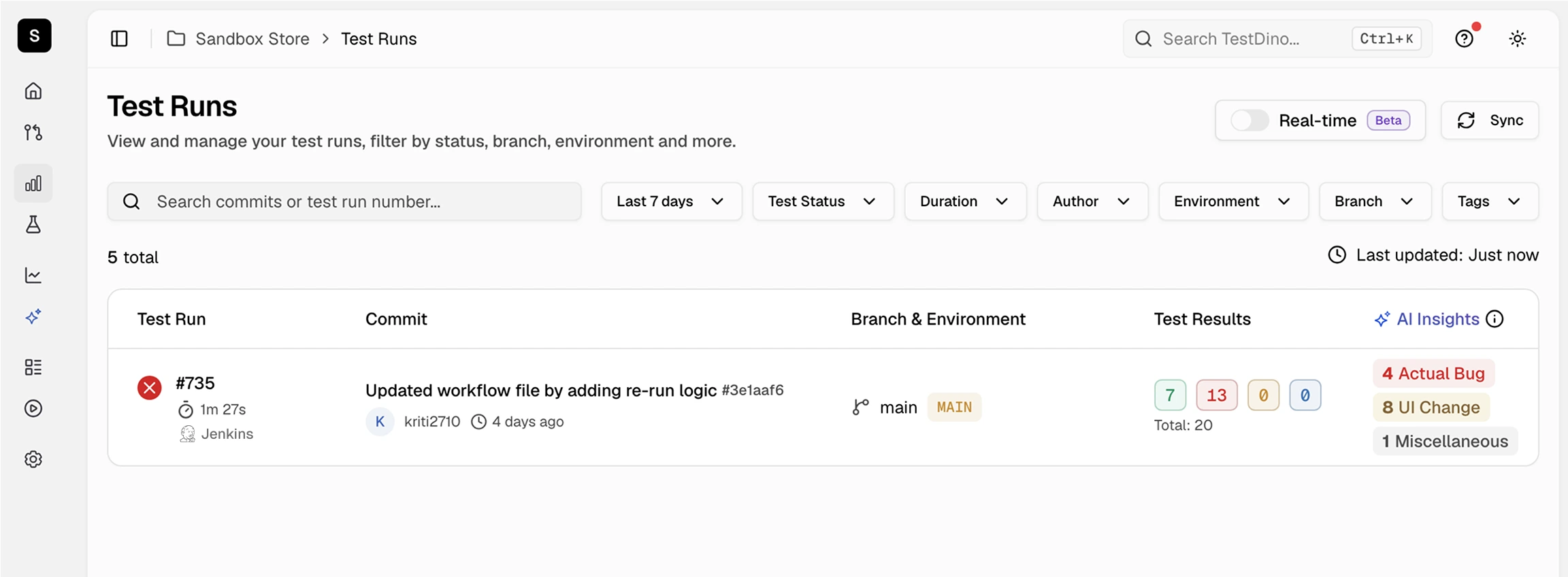

Results in TestDino

Once uploaded, the test run appears in your TestDino dashboard with full failure details, flaky detection, and trend data. TestDino Test Runs dashboard showing uploaded results from Jenkins pipeline with pass/fail counts and AI Insights

TestDino Test Runs dashboard showing uploaded results from Jenkins pipeline with pass/fail counts and AI Insights

Rerun Failed Tests

Cache test metadata to enable selective reruns:

stage('Cache rerun metadata') {
    steps {
        sh 'npx tdpw cache --token="$TESTDINO_TOKEN"'
    }
}

Rerun only failed tests on the next run:

stage('Rerun failed tests') {
    steps {
        script {
            def failed = sh(returnStdout: true, script: 'npx tdpw last-failed --token="$TESTDINO_TOKEN"').trim()
            if (failed) {
                sh "npx playwright test ${failed}"
            } else {
                echo 'No failed tests found.'
            }
        }
    }
}

For advanced rerun strategies, caching patterns, and CI optimization techniques, see CI Optimization.

Troubleshooting

Upload step skipped after test failure

Use unstable() instead of letting the build fail. This marks the build as unstable so subsequent stages (merge, upload) still execute. Alternatively, move the upload to a post.always block.

report.json not found

Verify your playwright.config.js includes both HTML and JSON reporters with HTML listed first. For sharded runs, ensure all shards stash their blob-report directory and the merge stage unstashes them before merging.

TESTDINO_TOKEN not available in pipeline

Confirm the credential is set in Manage Jenkins → Credentials with the ID TESTDINO_TOKEN. Use credentials('TESTDINO_TOKEN') in the environment block to map it to an environment variable.

Blob reports not found during merge

Ensure each shard uses stash allowEmpty: true to stash blob reports even on failure. Verify that the merge stage unstashes each shard’s blob report into separate directories before copying into all-blob-reports/.
